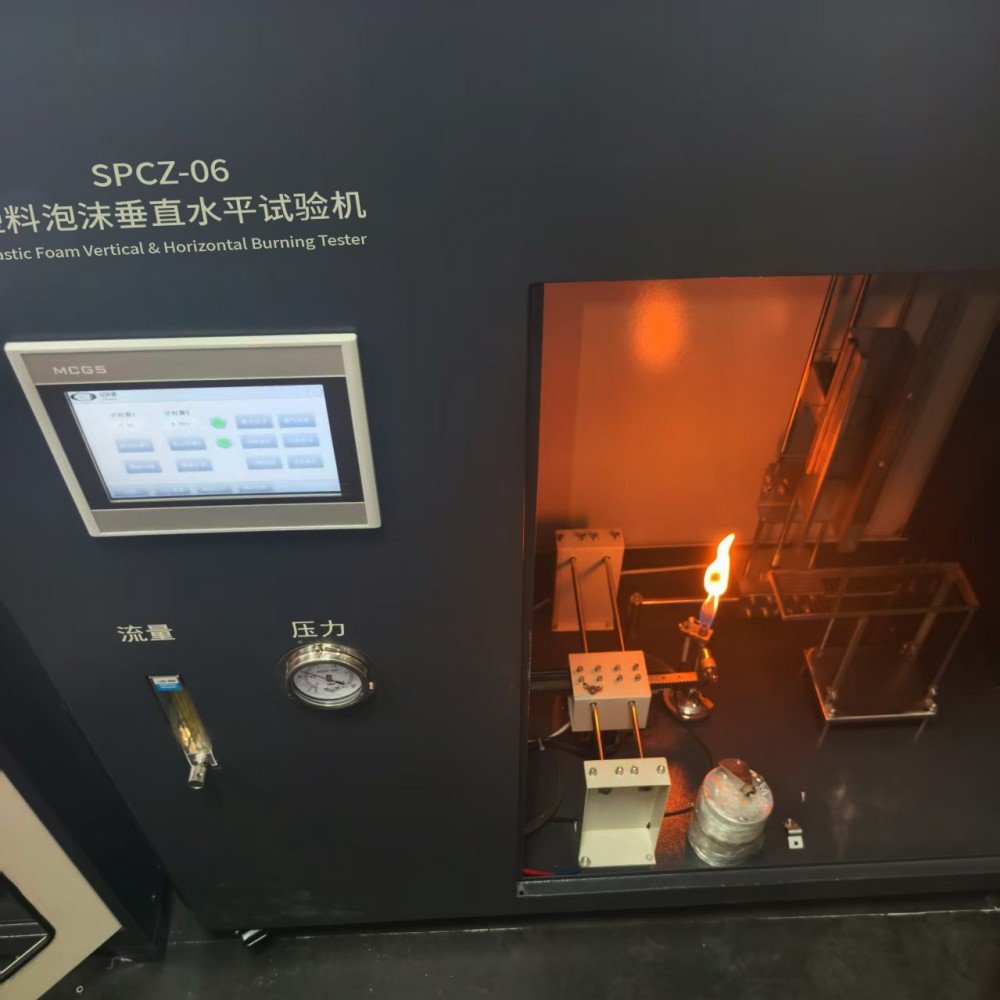

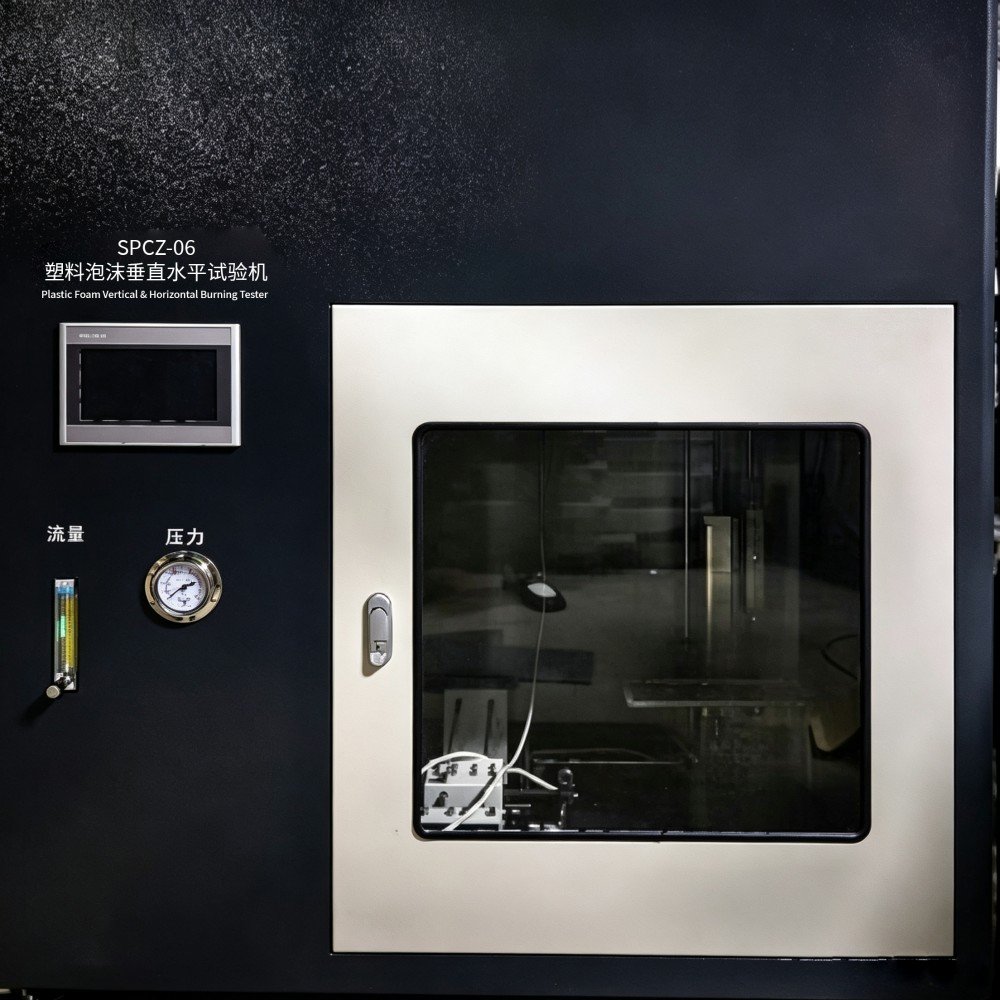

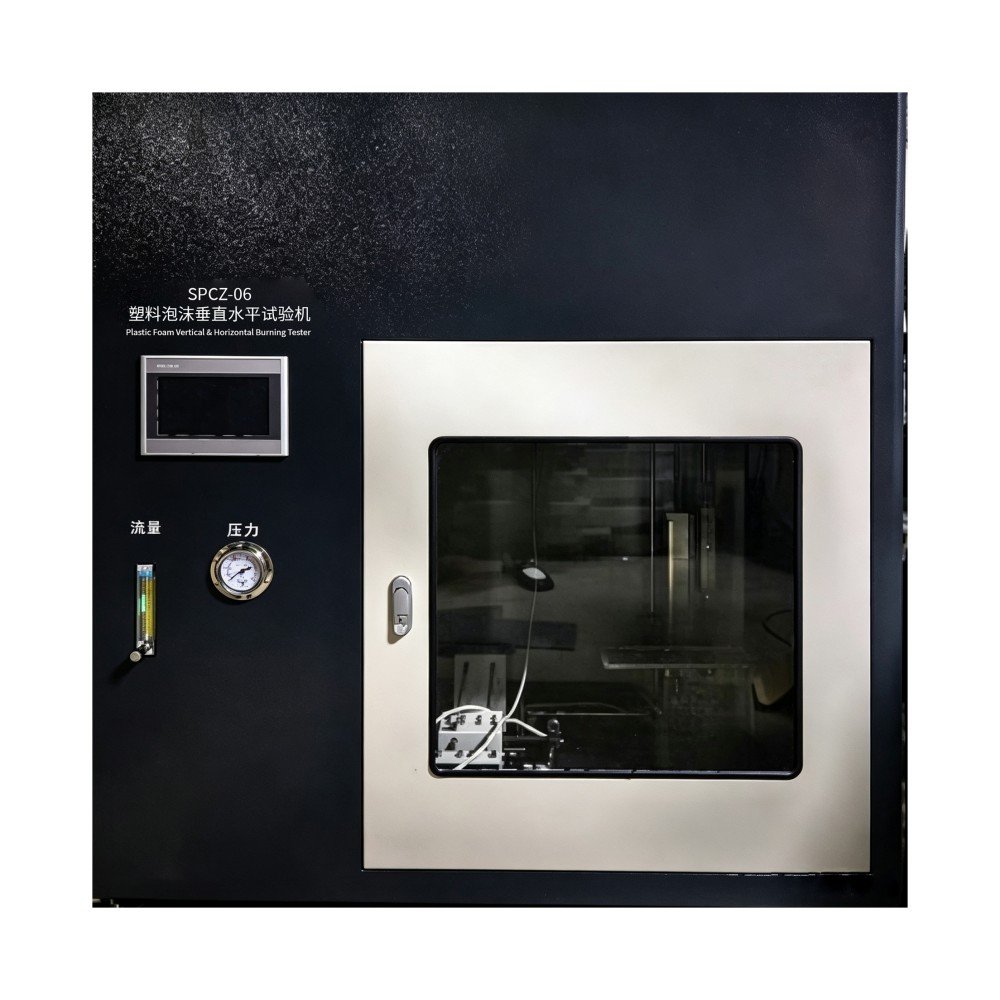

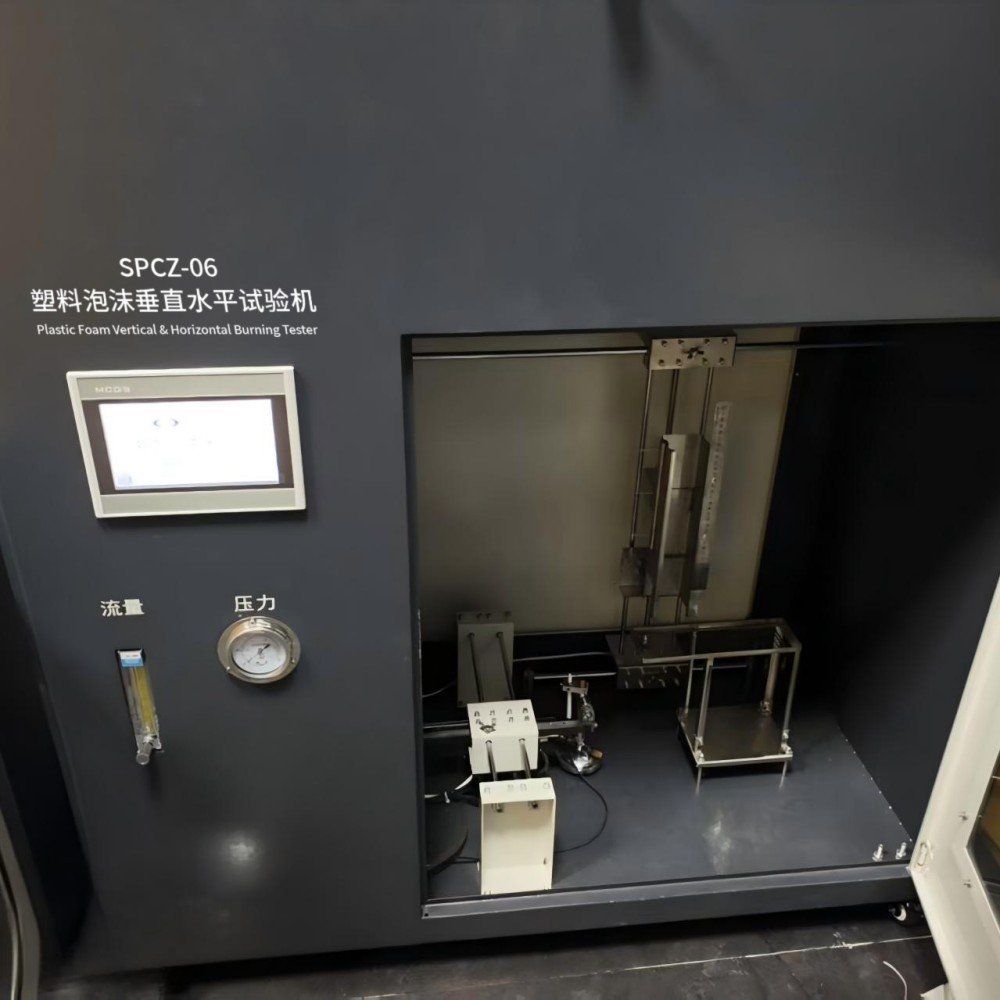

The SPCZ-06 Plastic Foam Vertical & Horizontal Burning Tester is a multi-functional laboratory flammability testing apparatus designed to evaluate the flame resistance, burning rate, flame height, and residual mass loss of cellular and rigid foam plastics. Engineered in full compliance with ISO 9772, ASTM D4986, ASTM D3014, UL 94 (HBF, HF-1, HF-2), and national standards GB/T 8332 and GB/T 8333, this system accommodates both horizontal and chimney-guided vertical burning methodologies.
Featuring a standardized combustion chamber (800 mm × 597 mm × 1147 mm), a precision Bunsen burner with a 9.5 mm nozzle and wing top, dual-mode timing control (0.1 s accuracy), and high-purity methane/propane gas regulation, this versatile Foam Plastic Flammability Test Machine provides authoritative quality control data for insulation foam manufacturers, automotive interior suppliers, third-party testing labs, and polymer research institutes.
Plastic Foam Burning Tester Compliance & Standards
This dual-mode horizontal and vertical foam burning test apparatus enables certified testing laboratories to perform formal flame safety evaluations across international and regional standards:
| Standard Code |
Standard Title & Scope |
Primary Testing Application |
| ISO 9772 & ASTM D4986 |
Cellular plastics — Determination of horizontal burning characteristics of small specimens subjected to a small flame |
International and North American benchmark for horizontal flame propagation and burning rate on cellular polymeric materials |
| UL 94 (HBF, HF-1, HF-2) |
Tests for flammability of foamed plastic materials used in devices and appliances |
Global safety classification testing for low-density foamed plastics (HBF, HF-1, HF-2 ratings) |
| ASTM D3014 |
Standard test method for flame height, time of burning, and loss of mass of rigid cellular plastics in a vertical position |
Vertical chimney test evaluating rigid foam insulation flame resistance and residual mass percentage |
| GB/T 8332 & GB/T 8333 |
Test methods for burning behavior of cellular plastics — Horizontal and Vertical burning methods |
Mandatory Chinese national standards for flexible and rigid cellular plastics flammability verification |
Technological Features of SPCZ-06 Foam Flammability Tester
- Dual Horizontal & Vertical Chimney Test Architecture: Supports quick configuration switching between horizontal wire-mesh specimen support (60 s flame exposure) and vertical chimney assembly with glass observation window (10 s flame exposure).
- Precision Bunsen Burner & Wing-Top Nozzle: Equipped with a standard 9.5 mm inner-diameter Bunsen burner fitted with a wing top, delivering uniform flame geometry and precise thermal exposure.
- Multi-Fuel Compatibility & Flow Control: Designed to operate with industrial-grade methane (≥98% purity), propane, or standardized mixed gas (37 ± 1 MJ/m³), ensuring consistent thermal delivery across international test protocols.
- High-Accuracy Digital Timing & Measurement: Integrated electronic timer accurate to 0.1 s and linear measurement tools accurate to 1 mm ensure precise recording of burning duration, flame height, and burning speed.
- Corrosion-Resistant Enclosed Combustion Chamber: Spacious 800 mm × 597 mm × 1147 mm sealed chamber protects the flame from room air drafts while facilitating easy smoke extraction through top exhaust ports.
Technical Specifications of SPCZ-06 Plastic Foam Burning Machine
| Governing Test Standards |
ISO 9772, ASTM D4986, ASTM D3014, UL 94 (HBF/HF-1/HF-2), GB/T 8332, GB/T 8333 |
| Combustion Chamber Inner Dimensions |
(800 ± 2) mm (W) × (597 ± 2) mm (D) × (1147 ± 2) mm (H) |
| Overall Equipment Dimensions |
1160 mm (L) × 600 mm (W) × 1250 mm (H) |
| Igniter Assembly |
Bunsen burner with 9.5 mm ID nozzle and specialized wing top |
| Combustion Fuel Options |
• Methane (≥98% purity)
• Propane (Calorific value: 94 ± 2 MJ/m³)
• Mixed Gas (Calorific value: 37 ± 1 MJ/m³) |
| Testing Precision |
Time: 0.1 s; Dimension/Length: 1 mm |
| Operating Environment |
Temperature: 15 °C to 35 °C; Relative Humidity: 45% to 75% |
| Power Supply & Power Rating |
AC 220 V ± 10%, 50 Hz; Power consumption: 100 W |
System Architecture & Testing Workflow of SPCZ-06 Foam Tester
Standardized Testing Workflow:
- Horizontal Method (ISO 9772 / GB/T 8332): Place the foam specimen horizontally on the steel-wire mesh support. Position the wing-top burner and apply the flame for 60 seconds. Record flame extent, burning duration, and calculate horizontal burning rate.
- Vertical Method (ASTM D3014 / GB/T 8333): Fix the rigid foam sample vertically inside the glass-fronted chimney. Apply the burner flame to the lower end for 10 seconds. Observe flame height, extinguish time, and weigh the residual sample to compute mass loss percentage.
Target Customer Applications:
- Rigid polyurethane (PU) and expanded polystyrene (EPS) thermal insulation board producers.
- Flexible foam manufacturers for automotive seats, mattresses, and furniture cushioning.
- Third-party polymer testing laboratories, UL compliance centers, and research organizations.
SPCZ-06 Plastic Foam Vertical & Horizontal Burning Tester FAQ
Q1: What is the main difference between horizontal and vertical foam burning tests?
A: The horizontal method (ISO 9772 / UL 94 HBF) evaluates flame spread rate across low-density or flexible foam samples on a wire mesh during 60 s flame exposure. The vertical chimney method (ASTM D3014) assesses rigid foam flame height and residual mass percentage following a 10 s ignition.
Q2: Can this tester perform UL 94 horizontal foamed material tests (HBF, HF-1, HF-2)?
A: Yes. The 9.5 mm wing-top Bunsen burner, specimen support mesh, and timing system meet the equipment requirements for UL 94 foamed plastic classification tests.
Q3: What gases can be used for combustion fuel in SPCZ-06?
A: The machine operates with industrial methane (≥98% purity), propane (94 ± 2 MJ/m³), or standardized natural gas mixtures with a calorific value of 37 ± 1 MJ/m³.
